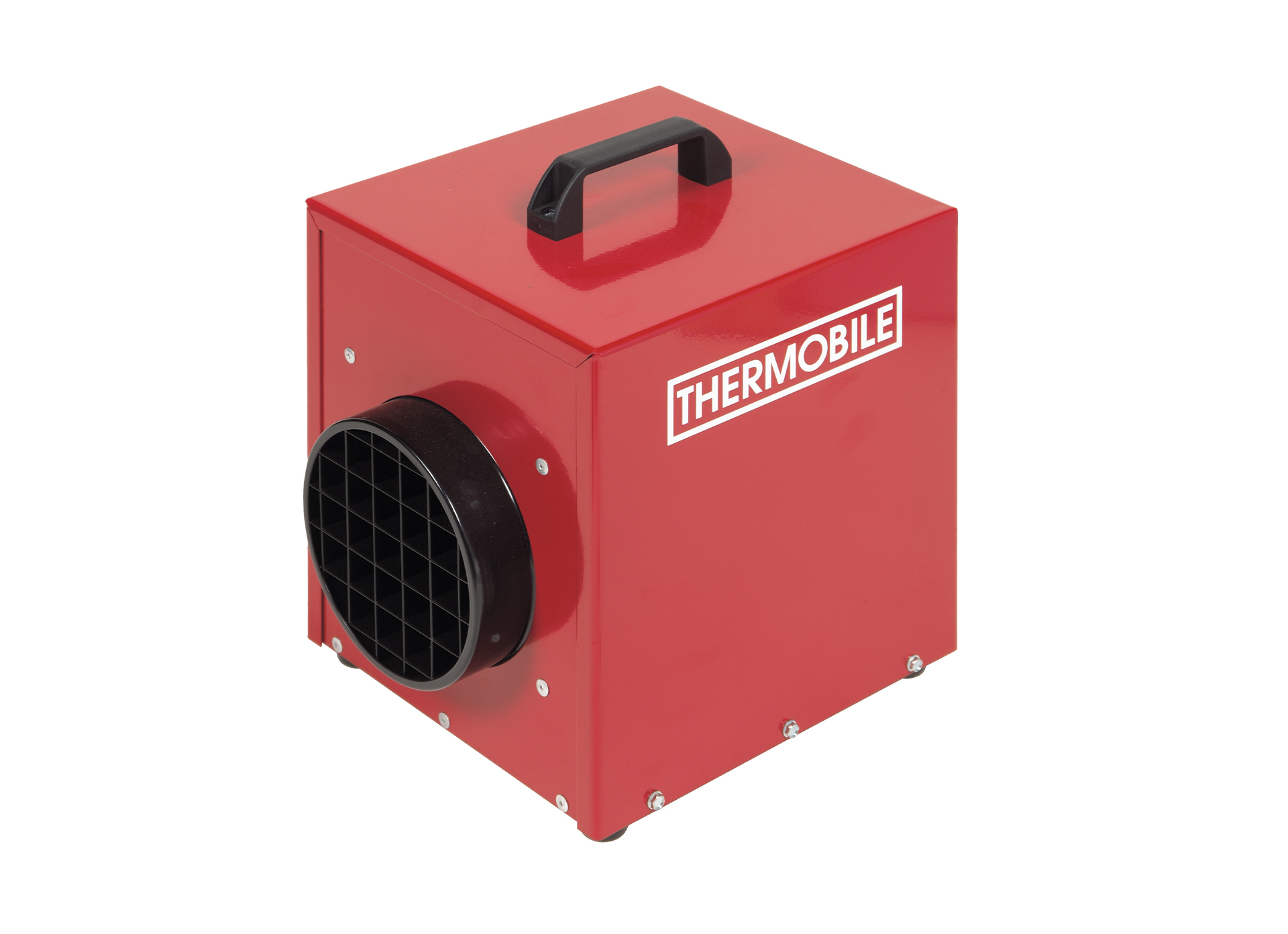

CH
The Thermobile CH, developed for heating on construction sites and supporting drying projects in combination with a construction dryer. The robust and simple design ensures a reliable and durable product. Equipped with a discharge ring for connecting air hoses.
Need advice? Call or send a message
Specifications
-
3
-
230/1/50
-
250
-
0 – 3
-
60
-
13
-
No
-
160
-
38x28x39
-
38x28x38
-
11
-
13
Characteristics
Equipped with one or more maximum thermostats that switch off the heating elements in case of overheating due to low air flow or blockages thereof.
Equipped with one or more stainless steel heating elements.
After cooling down, another automatic reset follows.
Double-walled with a corrosion-resistant sheet steel tube and outer casing.
The specially designed discharge grille prevents the surface from being directly blasted or the dry, warm air, from sweeping across the floor too quickly.
Separate plug thermostat available ( CH-12 18 ) for accurate temperature determination.
Robust heater with high air output.
- Support drying projects in e.g. water damage and renovations.
- Heating in (new) construction.
CH
Compare Performances
Performance Chart
| CH-12 | CH-18 | CH-3 | |
|---|---|---|---|
| Max. Capacity (kW) | 12 | 18 | 3 |
| Stroomaansluiting V/ph/Hz | 400/3/50 | 40//3/50 | 230/1/50 |
| Max. airflow (m³/h) | 600 | 1500 | 250 |
| Setting Range (kW) | 0 - 6 - 9 - 12 | 0 - 9 - 13.5 - 18 | 0 - 3 |
| Delta ΔT (ºC) | 100 | 90 | 60 |
| Measured Amperage 230V (A) | 18 | 26 | 13 |
| Built-In Thermostat | No | No | No |
| Air Outlet Cone Ø (mm) | 300 | 300 | 160 |
| Dimensions LxWxH (cm) | 66x37x45 | 55x42x58 | 38x28x39 |
| Packaged Dimensions LxWxH (cm) | 65x37x45 | 38x28x38 | |
| Weight (kg) | 23 | 28 | 11 |
| Packaged Weight (kg) | 25 | 30 | 13 |
| Fuel Type |
