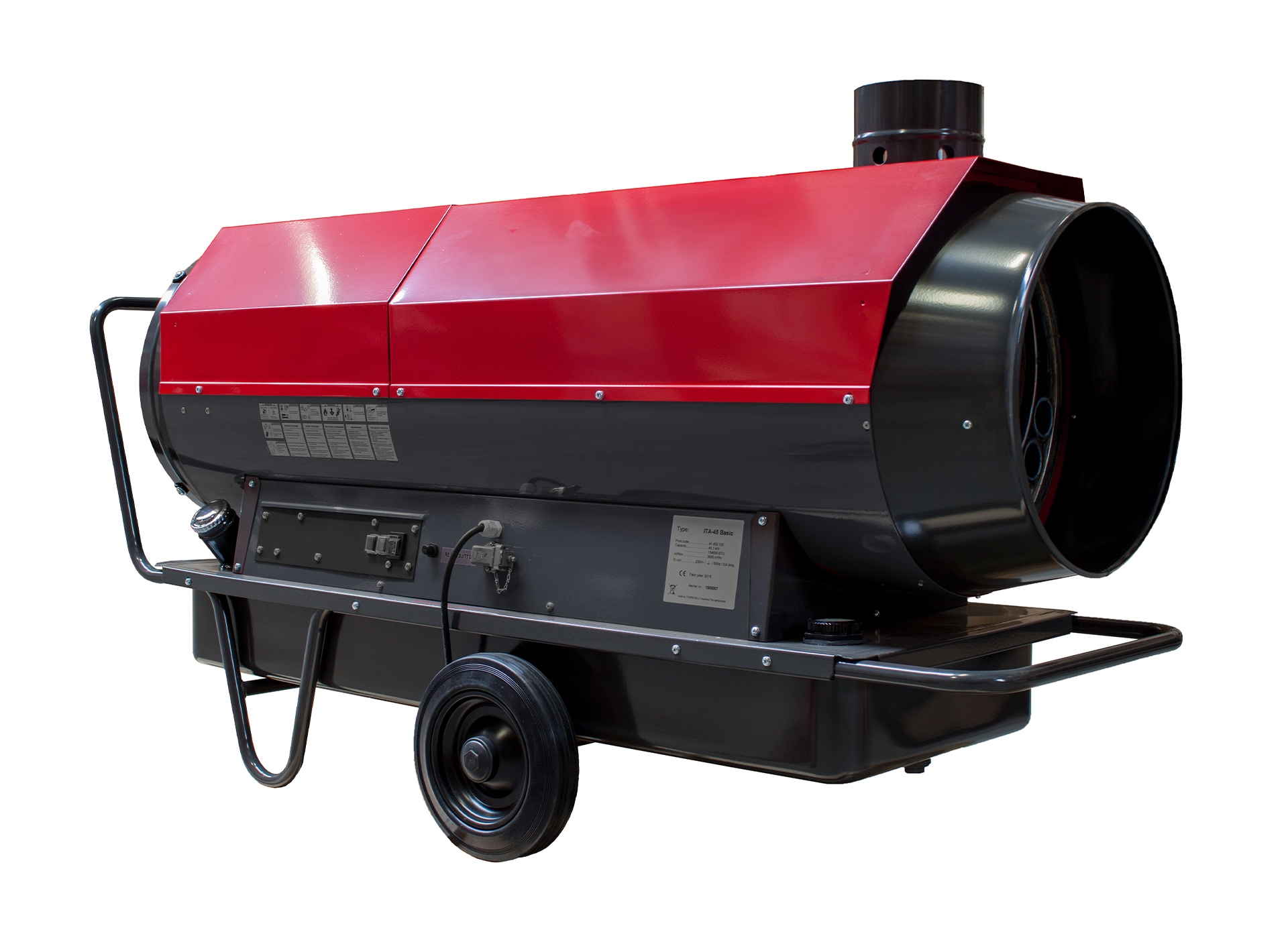

ITA-45

Name: ITA-45
SKU: 41452100
Availability: BackOrder

SKU: 41452100

Available on backorder

Need advice? Call +31 (0)7 65 87 34 50  or send a message

Printer friendly page

Specifications

Max. Capacity (kW)
45.1
Air Displacement (m³/h)
3000
Measured Amperage 230V (A)
200
Max. Fan Pressure (Pa)
200
Air Outlet Cone Ø (mm)
400
Chimney Connection Ø (mm)
150
Max. Fuel Consumption (l/h)
4.5
Fuel Type
Fuel Tank Capacity (l)
80
Fuel Level Gauge
Yes
Thermostat Connection
Yes
Dimensions LxWxH (cm)
163x62x90
Packaged Dimensions LxWxH (cm)
173x69x105
Weight (kg)
105
Packaged Weight (kg)
138

Heat calculator

Calculate how much kW is needed for a specific room.

Length (m)

Width (m)

Height (m)

Desired indoor temperature (°C)

Outdoor temperature (°C)

K-value (W/m³·K)

Ventilation (Air changes per hour)

Air flow (m³/u)

Output (KW)

Calculated heat demand *

ITA-45 Accesories

View all products from the ITA series

Bekijk de serie

Frequently Asked Questions

The temperature of the intake air is cooled back by about 12°C. It is therefore important to always recirculate the air from the room to be cooled. (In this case, the air is drawn in from the room and blown back into the room with a temperature approximately 12°C lower).

This depends on the area and volume, insulation of the building and application. A rule of thumb is 40W per m3 for insulated buildings and 60W per m3 for tents, for example.

For all heaters with an oil-fired auxiliary burner, the burner can be replaced with a gas-fired auxiliary burner.

Neem contact op!

Send an Email +31 (0)7 65 87 34 50 

Download onze catalogus

Download now

Productie in eigen fabriek

Nederlandse kwaliteit sinds 1958

Wereldwijde levering

Klantspecifiek mogelijk

ITA-45

Specifications

ITA-45 Accesories

3-weg oliekraanset - ITA

DE600 - Olieaanvoerset, 60l p/u

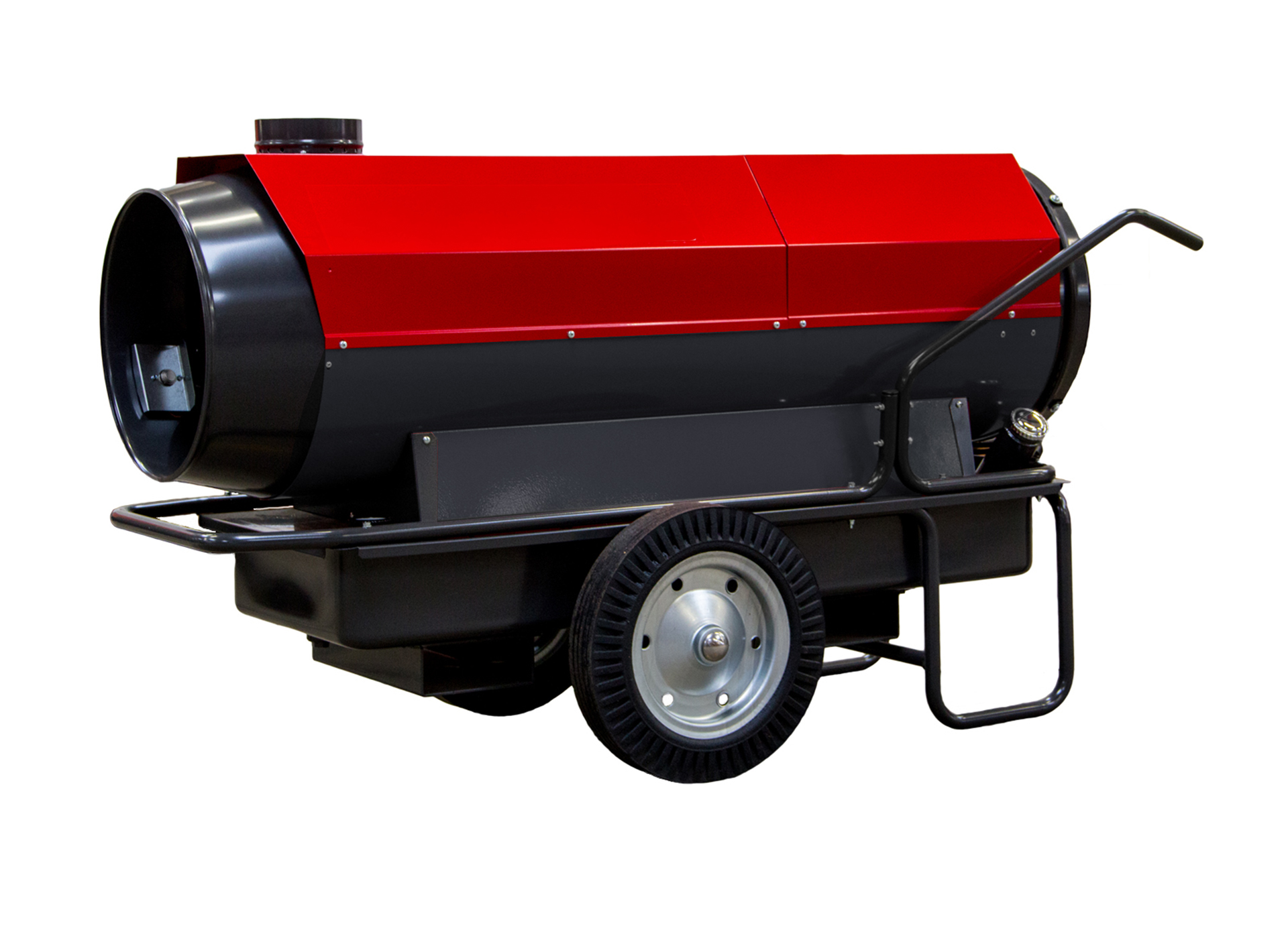

Hijsbeugelset - ITA-45 Robust
