ITA
Oil-fired with flue gas outlet

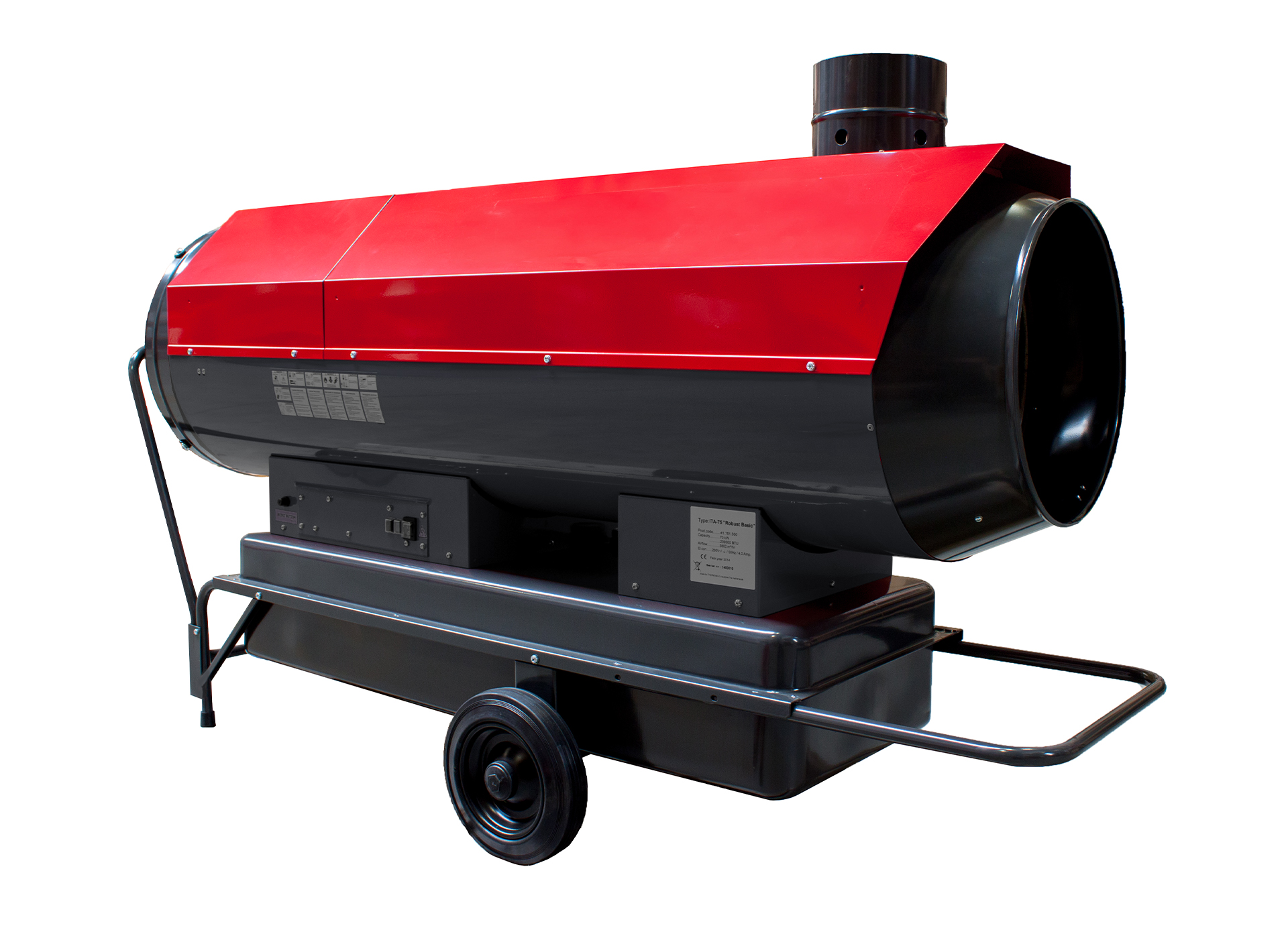

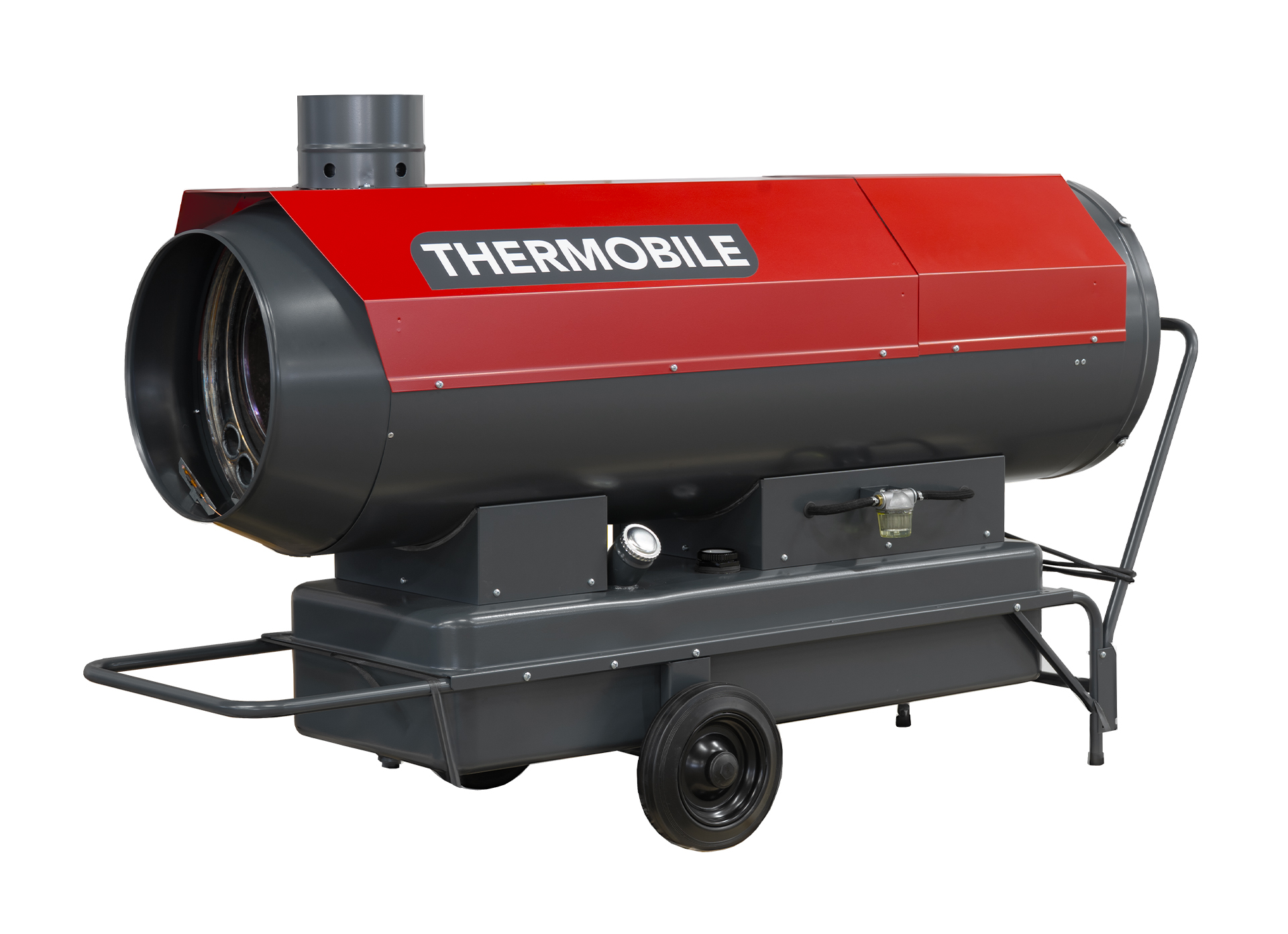

The Thermobile ITA is a mobile indirect oil-fired air heater. It is ideally suited for heating construction sites, warehouses and workshops. Known for its reliability, efficiency and ease of use, the ITA is also widely used for heating tents , temporary shelters and emergency hospitals.
Need advice? Call or send a message
Specifications
-
70
-
3800
-
4
-
200
-
400
-
180
-
7
-
120
-
Yes
-
Yes
-
201x65x98
-
202x75x128
-
131
-
175
Characteristics
Blow-out temperature with a delta ΔT of 50°C.
High-efficiency heat exchanger ( approx. 89% ).
The ITA Robust version features tank heating, forklift slots, steel wheels and a protective bar all around.
As an option, an air hose for recirculation can be connected to all models.
Robust lifting bracket available as an option.
Composed of high-quality sheet metal with powder coating for a long service life.
Possibility of connecting air hoses for targeted heating.
Equipped with a fuel tank for at least 16 hours of burning.
- Heating storage sheds, workspaces and construction sites.
- Heating of tents, temporary shelters and emergency hospitals.
- Drying and preservation of agricultural products.
ITA
Compare Performances
Performance Chart
| ITA-45 | ITA-75 | ITA-45 Robust | ITA-75 Robust | ITA-35 | |
|---|---|---|---|---|---|
| Max. Capacity (kW) | 45.1 | 70 | 45.1 | 70 | 24.8 |
| Air Displacement (m³/h) | 3000 | 3800 | 3000 | 3800 | 1.500 |
| Measured Amperage 230V (A) | 200 | 4 | 3.3 | 4 | 1.3 |
| Max. Fan Pressure (Pa) | 200 | 200 | 200 | 200 | 150 |
| Air Outlet Cone Ø (mm) | 400 | 400 | 400 | 400 | 300 |
| Chimney Connection Ø (mm) | 150 | 180 | 150 | 180 | 150 |
| Max. Fuel Consumption (l/h) | 4.5 | 7 | 4.5 | 7 | 2.4 |
| Fuel Type | |||||
| Fuel Tank Capacity (l) | 80 | 120 | 80 | 120 | 40 |
| Fuel Level Gauge | Yes | Yes | Yes | Yes | No |
| Thermostat Connection | Yes | Yes | Yes | Yes | Yes |
| Dimensions LxWxH (cm) | 163x62x90 | 201x65x98 | 168x69x94 | 192x69x117 | 125x49x69 |
| Packaged Dimensions LxWxH (cm) | 173x69x105 | 202x75x128 | 186x69x121 | 202x75x133 | 129x52x85 |
| Weight (kg) | 105 | 131 | 148 | 165 | 58 |
| Packaged Weight (kg) | 138 | 175 | 170 | 192 | 76 |
