MBC

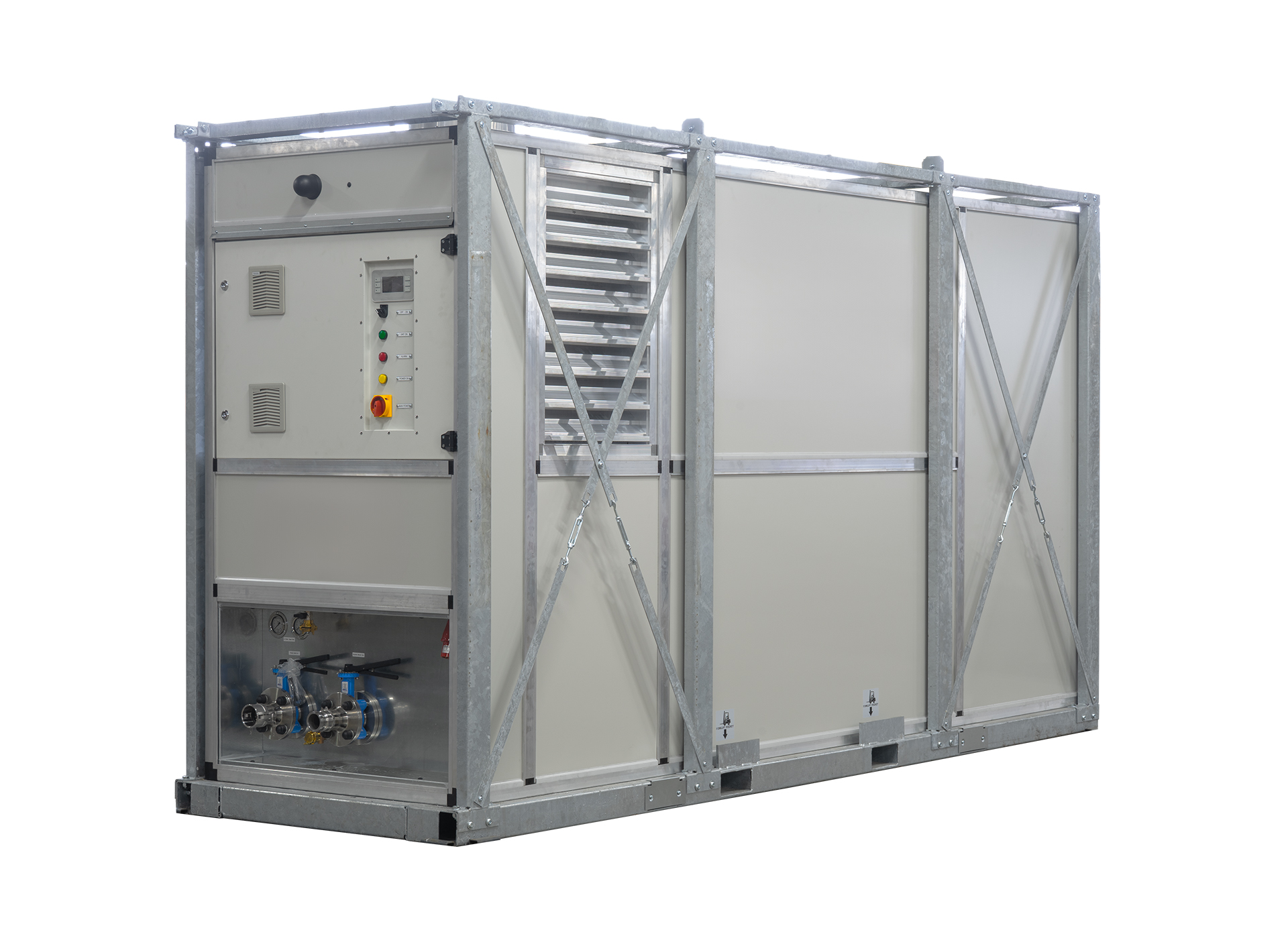

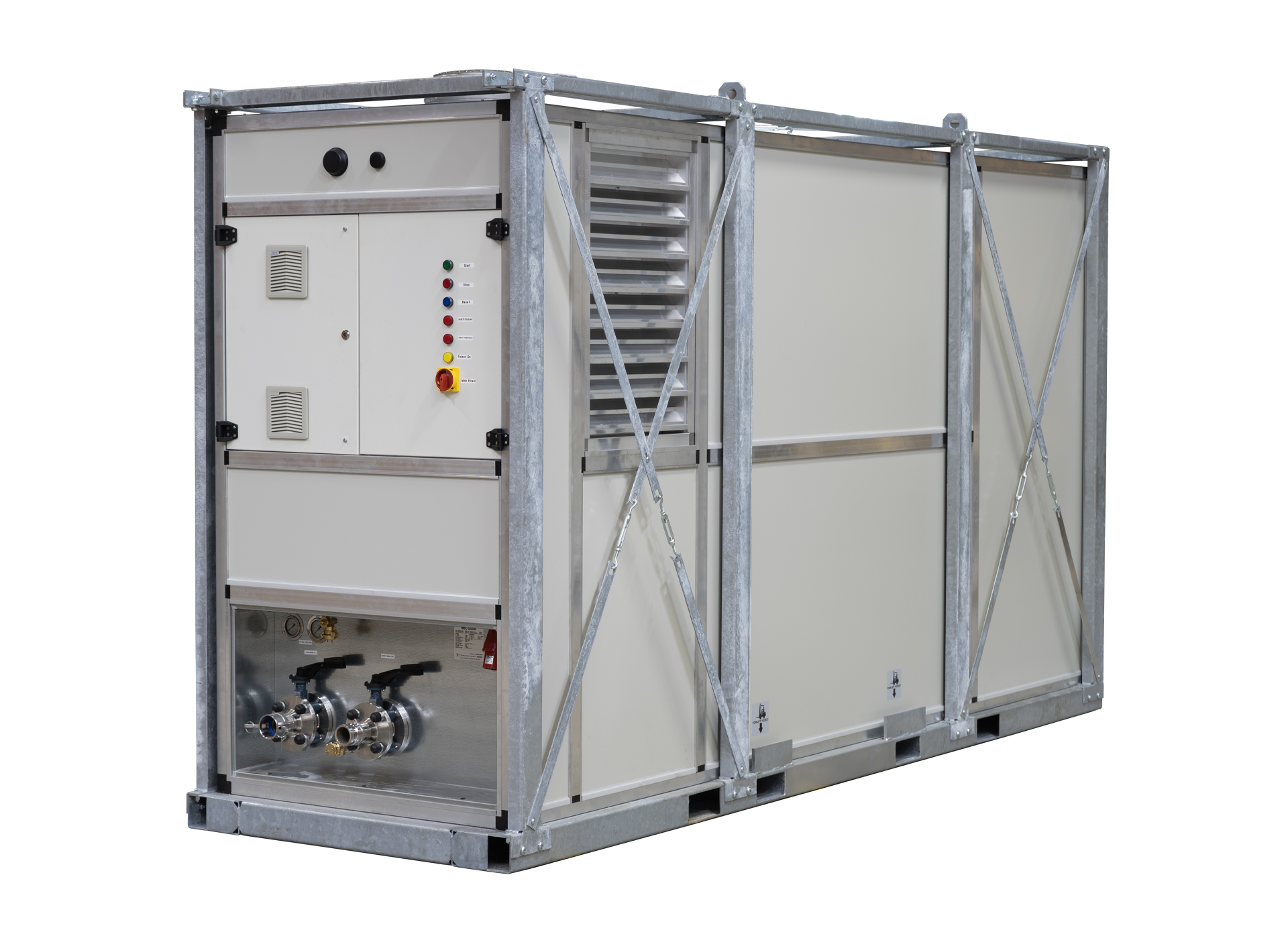

Discover the powerful MBC compact boiler, built on a sturdy galvanised frame. With a primary circuit with a capacity of no less than 655 litres, temperature fluctuations are minimal. The built-in automatic control system ensures precise control of the boiler to the desired result. Moreover, the Riello 2-stage burner is suitable for alternative fuels such as HVO and GTL, making this boiler run much more environmentally friendly than its diesel-only counterpart.
Need advice? Call or send a message
Specifications
-
250
-
80
-
700
-
>95
-
2 camlock
-
3.2
-
400/3/50
-
52
-
61
-
385x120x220
-
3100
Characteristics
700-litre water tank for stable operation.
Ability to use different fuel types (diesel, HVO and GTL).
Built on a sturdy galvanised frame and protected by a robust construction.
Small footprint of 4.6m².
Easy to transport thanks to forklift slots and lifting eyes.
Compact boiler with a large water tank for efficient heating.
Easy to maintain and use.
Possibility of running additional programmes using an Ethernet connection.
Equipped with various safety systems such as a fire valve, maximum thermostat and pressure relief valve.
- Targeted heating of construction sites, sports and large events.
- Mobile heating plant for powerful, efficient heating solutions for industry. They are quick to set up and ideal for construction sites, emergency heating and other temporary applications such as heat supply during renovation or heating system failure.
MBC
Compare Performances
Performance Chart
| MBC-500 | |
|---|---|
| Max. Capacity (kW) | |
| Min. Capacity (kW) | 250 |
| Max. Outlet Temperature (°C) | 80 |
| Primary Circuit Capacity (l) | 700 |
| Net Efficiency 2nd Phase (%) | >95 |
| Secondary circuit connections (Inch) | 2 camlock |
| Measured Amperage 230V (A) | 3.2 |
| Power Connection (V/ph/Hz) | 400/3/50 |
| Fuel Type | |
| Max. Fuel Consumption (l/h) | 52 |
| Sound Level @5m (dB) | 61 |
| Dimensions LxWxH (cm) | 385x120x220 |
| Weight (kg) | 3100 |
