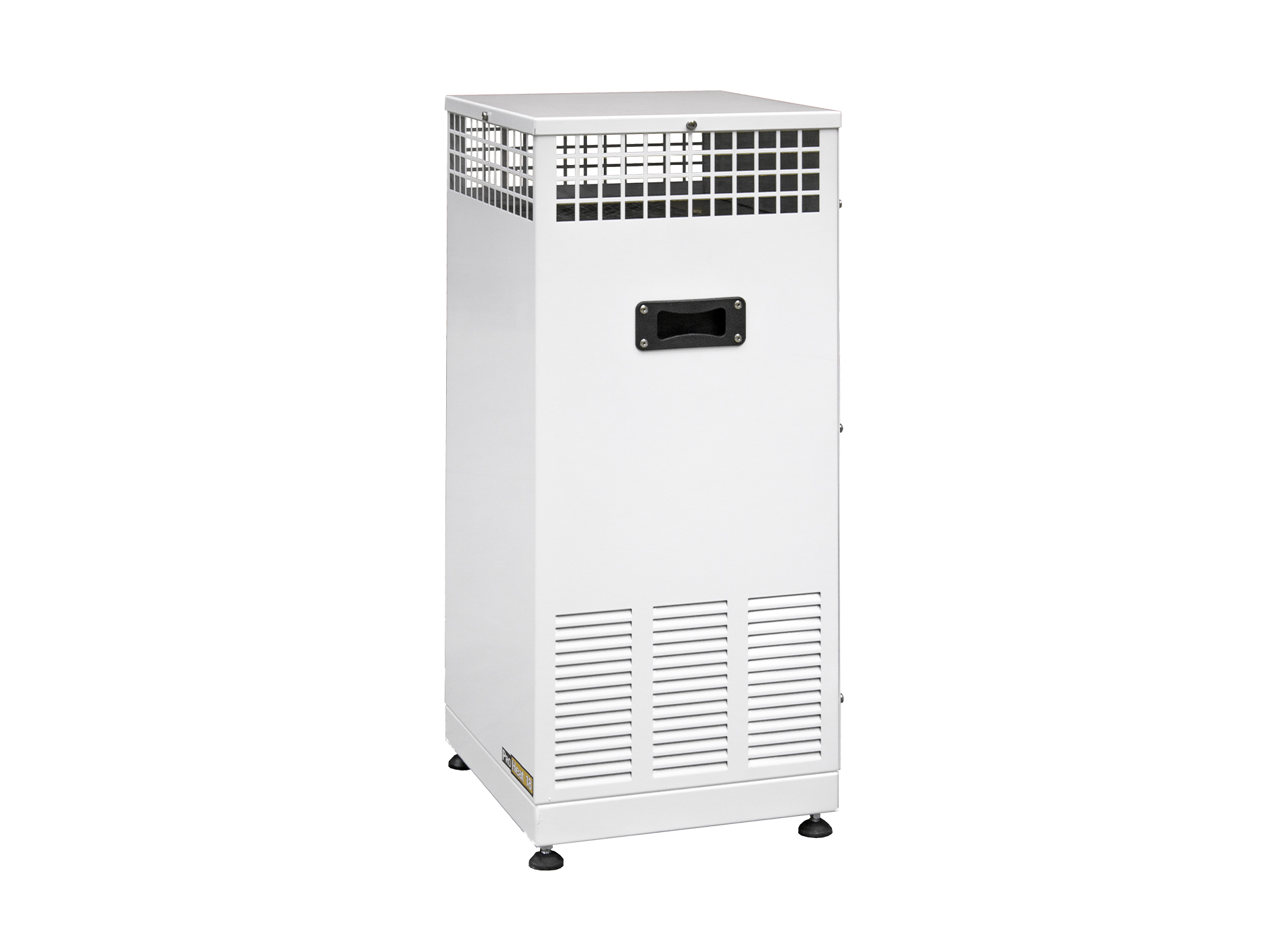

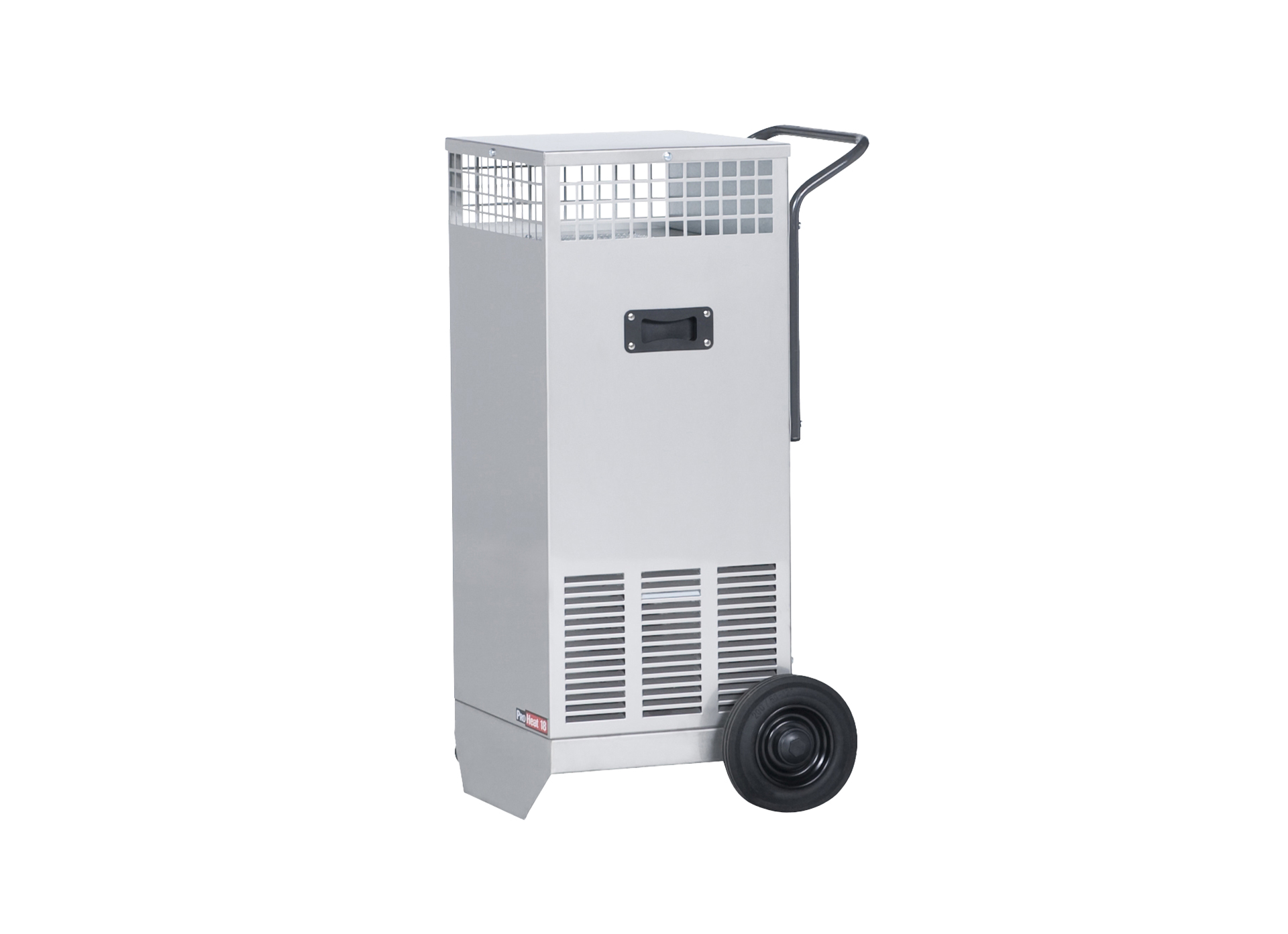

PROHEAT-18

Name: PROHEAT-18
SKU: 40018000
Availability: BackOrder

SKU: 40018000

Available on backorder

Need advice? Call +31 (0)7 65 87 34 50  or send a message

Printer friendly page

Specifications

Max. Capacity (kW)
18
Power Connection (V/ph/Hz)
400/3/50
Max. airflow (m³/h)
1000
Setting Range (kW)
0 – 9 – 18
Delta ΔT (ºC)
120
Measured Amperage 230V (A)
13 – 26
Thermostat Connection
Yes
Built-In Thermostat
Yes
Dimensions LxWxH (cm)
51x40x97
Packaged Dimensions LxWxH (cm)
107x57x70
Weight (kg)
40
Packaged Weight (kg)
53

Heat calculator

Calculate how much kW is needed for a specific room.

Length (m)

Width (m)

Height (m)

Desired indoor temperature (°C)

Outdoor temperature (°C)

K-value (W/m³·K)

Ventilation (Air changes per hour)

Air flow (m³/u)

Output (KW)

Calculated heat demand *

PROHEAT-18 Accesories

View all products from the Mobile Heating series

Bekijk de serie

Frequently Asked Questions

The temperature of the intake air is cooled back by about 12°C. It is therefore important to always recirculate the air from the room to be cooled. (In this case, the air is drawn in from the room and blown back into the room with a temperature approximately 12°C lower).

This depends on the area and volume, insulation of the building and application. A rule of thumb is 40W per m3 for insulated buildings and 60W per m3 for tents, for example.

For all heaters with an oil-fired auxiliary burner, the burner can be replaced with a gas-fired auxiliary burner.
