TA

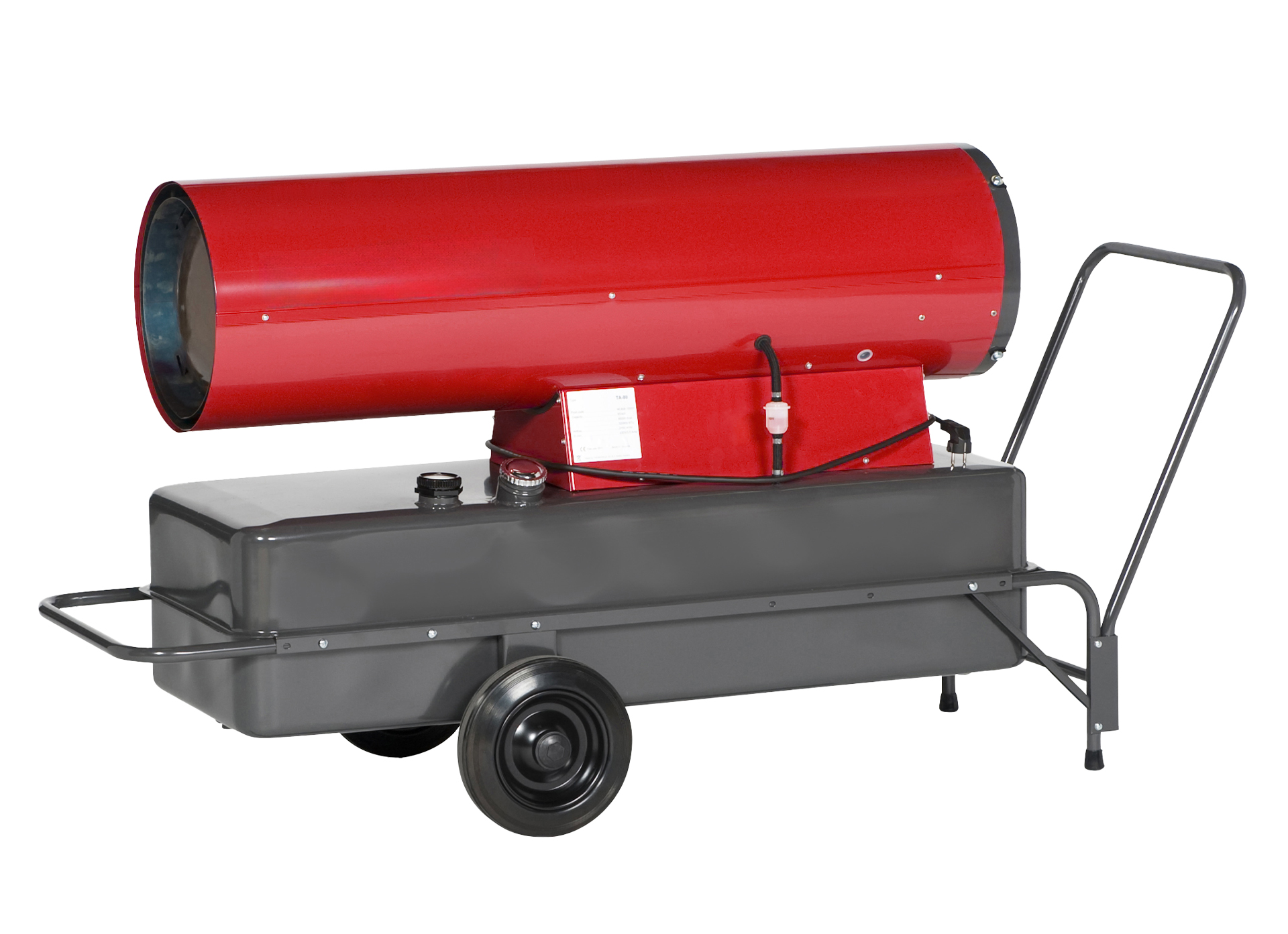

The Thermobile TA is a mobile direct oil-fired air heater, very suitable as emergency heating for e.g. construction sites, warehouses and workshops. Due to direct-fired combustion, a high discharge temperature is achieved up to approx. 450°C.
Need advice? Call or send a message
Specifications
-
93
-
2150
-
3.6
-
9
-
160
-
Yes
-
Yes
-
173x63x90
-
129x67x94
-
69
-
85
Characteristics
All models are equipped with burner automatic, photocell flame monitoring and thermostat connection.
Equipped with high-pressure pump for diesel, petroleum with 1-way pipe. (Optionally expandable to 2-way system for direct suction from external fuel tank).
The double-walled outer jacket stays cool during use.
Composed of high-quality sheet metal with powder coating for long service life.
High discharge temperature of approx. 450°C.
100% fuel efficiency.
Equipped with ample fuel tank for at least 16 hours of burning.
- Heating of well-ventilated storage sheds, work areas, halls, sorting areas, construction sites, greenhouses and polytunnels.
- Heat disinfecting e.g. containers, pest control.
- Drying and storage of bulbs and agricultural products.
TA
Compare Performances
Performance Chart
| TA-80 | TA-40 | TA-30 | TA-22 | |
|---|---|---|---|---|
| Max. Capacity (kW) | 93 | 46 | 30 | 25 |
| Air Displacement (m³/h) | 2150 | 1200 | 600 | 600 |
| Measured Amperage 230V (A) | 3.6 | 2.1 | 1 | 1 |
| Max. Fuel Consumption (l/h) | 9 | 4.5 | 2.7 | 2.5 |
| Fuel Tank Capacity (l) | 160 | 80 | 40 | 40 |
| Fuel Type | ||||
| Fuel Level Gauge | Yes | Yes | No | No |
| Thermostat Connection | Yes | Yes | Yes | Yes |
| Dimensions LxWxH (cm) | 173x63x90 | 128x54x80 | 119x48x60 | 119x48x60 |
| Packaged Dimensions LxWxH (cm) | 129x67x94 | 108x57x81 | 110x50x60 | 110x50x60 |
| Weight (kg) | 69 | 48 | 31 | 31 |
| Packaged Weight (kg) | 85 | 62 | 34 | 34 |
