VAL

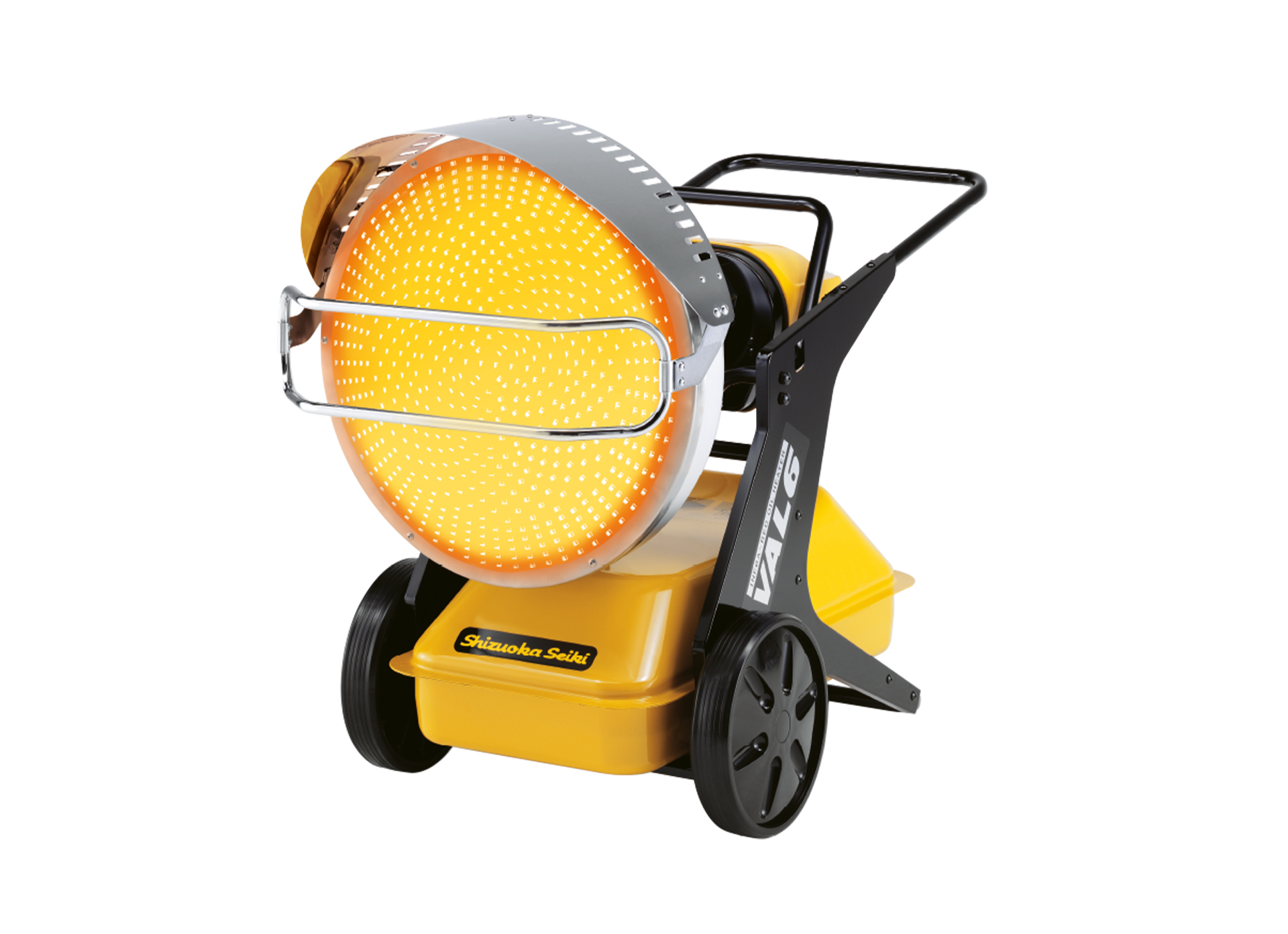

Experience instant, targeted heat with the Thermobile VAL Heaters. This oil-fired infrared heater delivers efficient heating without air displacement and, with its compact and portable design, is the ideal solution for areas where immediate heat is needed.
Need advice? Call or send a message
Specifications
-
40
-
0.25
-
3.7
-
58
-
Yes
-
Yes
-
Yes
-
124x65x97
-
71x95x102
-
50
-
59
Characteristics
Equipped with photocell monitoring for safe operation.
Stable mobile base and vertically adjustable head (1-STEP also horizontally adjustable).
The infrared heater is set up to heat a specific room through its radiant heat. The heater has an exceptionally high efficiency of 100% as all fuel is converted directly into heat.
As there is no air movement, the infrared heater is exceptionally quiet.
Operation via thermostat possible.
Low-odour and silent heat without air movement.
EPX: 2-stage burner with larger disc (20% larger) for further heat range. Heated oil filter so fuel remains liquid.
- Local heating of workplaces, storage sheds, workshops and warehouses.
- Reheating and thawing of machines and materials.
VAL
Compare Performances
Performance Chart
| VAL-6 KB | VAL MIDI | VAL-6 1-STEP | VAL-6 EPX | |
|---|---|---|---|---|
| Max. Capacity (kW) | 40 | 33 | 40 | |
| Measured Amperage 230V (A) | 0.25 | 0.25 | 0.25 | |
| Fuel Type | ||||
| Max. Fuel Consumption (l/h) | 3.7 | 3.1 | 3.7 | |
| Fuel Tank Capacity (l) | 60 | 35 | 58 | |
| Fuel Level Gauge | Yes | Yes | Yes | |
| Thermostat Connection | Yes | Yes | Yes | |
| Built-In Thermostat | No | No | Yes | |
| Dimensions LxWxH (cm) | 91x69x91 | 71x66x81 | 124x65x97 | |
| Packaged Dimensions LxWxH (cm) | 70x66x93 | 69x67x93 | 71x95x102 | |
| Weight (kg) | 57 | 38 | 50 | |
| Packaged Weight (kg) | 61 | 43 | 59 |
