Bio Energy

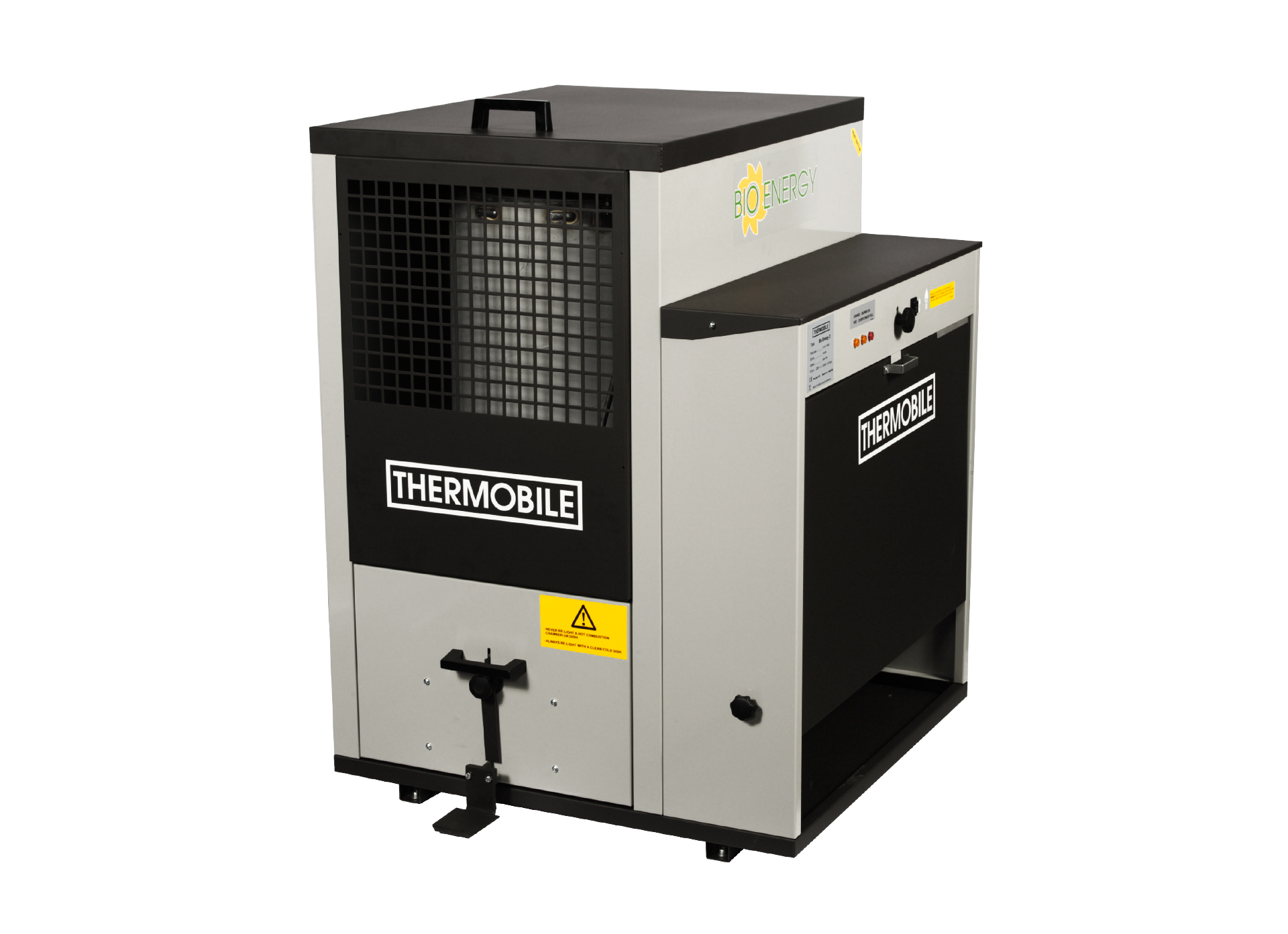

The Thermobile Bio Energy is a stationary heater ideally suited for heating workshops. Made of high-quality sheet material with overheat thermostat and automatic safety devices. The Bio Energy is suitable for various bio fuels such as linseed oil.
Need advice? Call or send a message
Specifications
-
24 – 41
-
3000
-
1.1
-
55
-
150
-
3
-
4.0
-
82x88x108
-
102x88x124
-
156
-
178
Characteristics
Equipped with axial fan (radial optional).
Overheating thermostat, automatic protections.
Odourless combustion of non-fossil fuels (100% biodiesel).
Built-in day tank of at least 50 litres.
High/low capacity control.
Manual ignition.
Various non-fossil fuel types usable.
Fast and good distribution of heat.
Environmentally friendly space heating.
Options for additional heat distribution available: flue booster and duct kit.
Bio Energy B: ‘Thermo’ as an option for additional air displacement.
- Heating of warehouses and other work areas.
- Heating workshops.
Bio Energy
Compare Performances
Performance Chart
| Bio Energy-B | Bio Energy-3 | Bio Energy-2 | Bio Energy-1 | |
|---|---|---|---|---|
| Max. Capacity (kW) | 20 - 27 | 36 - 59 | 24 - 41 | 20 - 27 |
| Air Displacement (m³/h) | 0/800¹ | 3000 | 3000 | 800 |
| Measured Amperage 230V (A) | 0.6 | 1.2 | 1.1 | 0.6 |
| Fuel Tank Capacity (l) | 50 | 55 | 55 | 50 |
| Chimney Connection Ø (mm) | 150 | 200 | 150 | 150 |
| Min. Fuel Consumption (l/h) | 2 | 4.3 | 3 | 2 |
| Max. Fuel Consumption (l/h) | 2.7 | 6.2 | 4.0 | 2.7 |
| Dimensions LxWxH (cm) | 54x73x113 | 82x88x129 | 82x88x108 | 54x87x137 |
| Packaged Dimensions LxWxH (cm) | 90x62x121 | 102x88x144 | 102x88x124 | 90x62x31 |
| Weight (kg) | 65 | 170 | 156 | 76 |
| Packaged Weight (kg) | 80 | 195 | 178 | 91 |
| Fuel Type |
