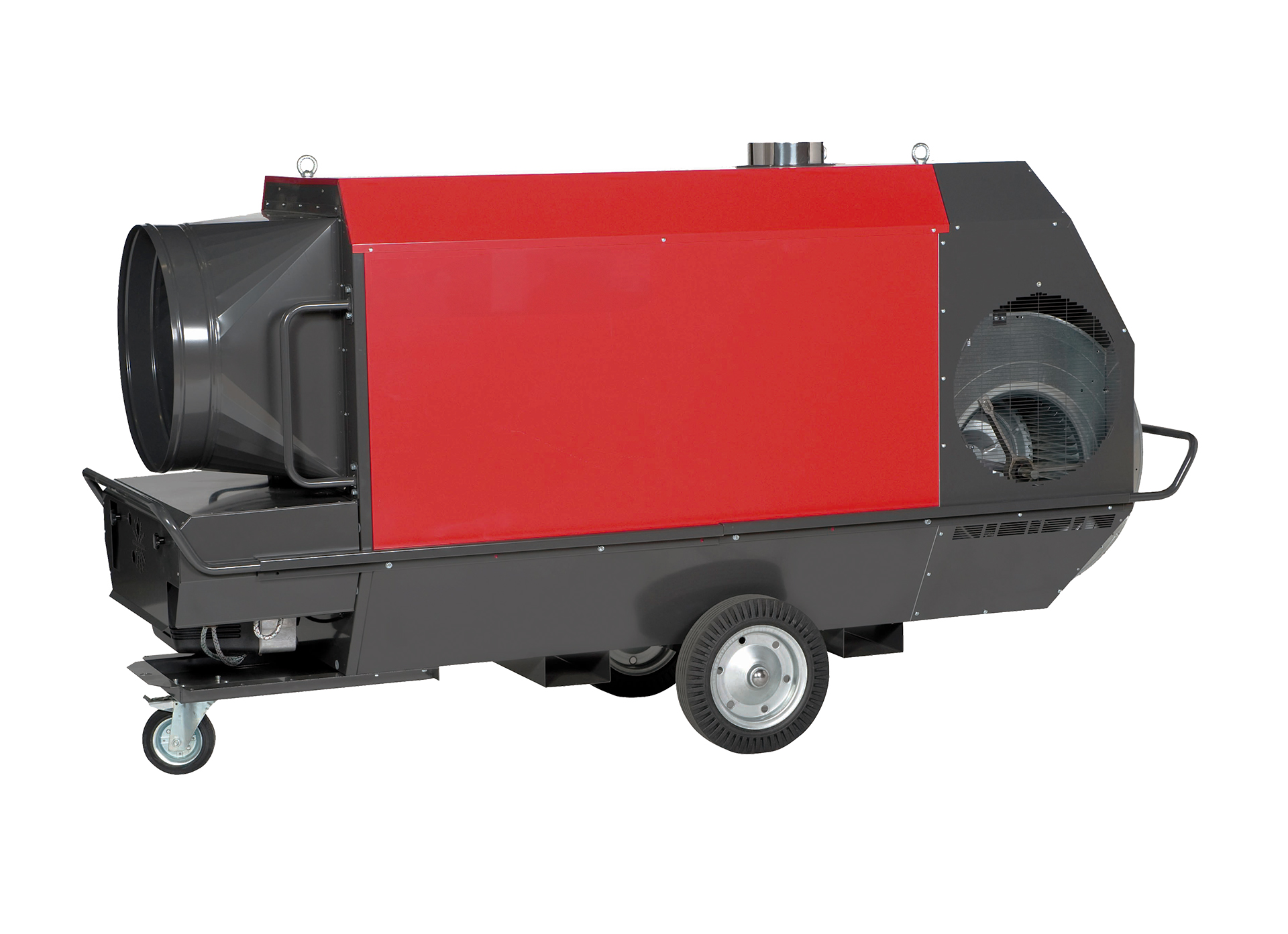

IMA-200 RHP

Name: IMA-200 RHP
SKU: 41728010
Availability: BackOrder

SKU: 41728010

Available on backorder

Need advice? Call +31 (0)7 65 87 34 50  or send a message

Printer friendly page

Specifications

Max. Capacity (kW)
200
Air Displacement (m³/h)
13000
Measured Amperage (A)
Power Connection (V/ph/Hz)
400/3/50
Max. Fan Pressure (Pa)
500
Air Outlet Cone Ø (mm)
600
Chimney Connection Ø (mm)
200
Fuel Type
Max. Fuel Consumption (l/h)
19.4
Thermostat Connection
Yes
Dimensions LxWxH (cm)
271x91x152
Packaged Dimensions LxWxH (cm)
290x104x172
Weight (kg)
450
Packaged Weight (kg)
588

Heat calculator

Calculate how much kW is needed for a specific room.

Length (m)

Width (m)

Height (m)

Desired indoor temperature (°C)

Outdoor temperature (°C)

K-value (W/m³·K)

Ventilation (Air changes per hour)

Air flow (m³/u)

Output (KW)

Calculated heat demand *

IMA-200 RHP Accesories

View all products from the IMA series

Bekijk de serie

Frequently Asked Questions

The temperature of the intake air is cooled back by about 12°C. It is therefore important to always recirculate the air from the room to be cooled. (In this case, the air is drawn in from the room and blown back into the room with a temperature approximately 12°C lower).

This depends on the area and volume, insulation of the building and application. A rule of thumb is 40W per m3 for insulated buildings and 60W per m3 for tents, for example.

For all heaters with an oil-fired auxiliary burner, the burner can be replaced with a gas-fired auxiliary burner.
