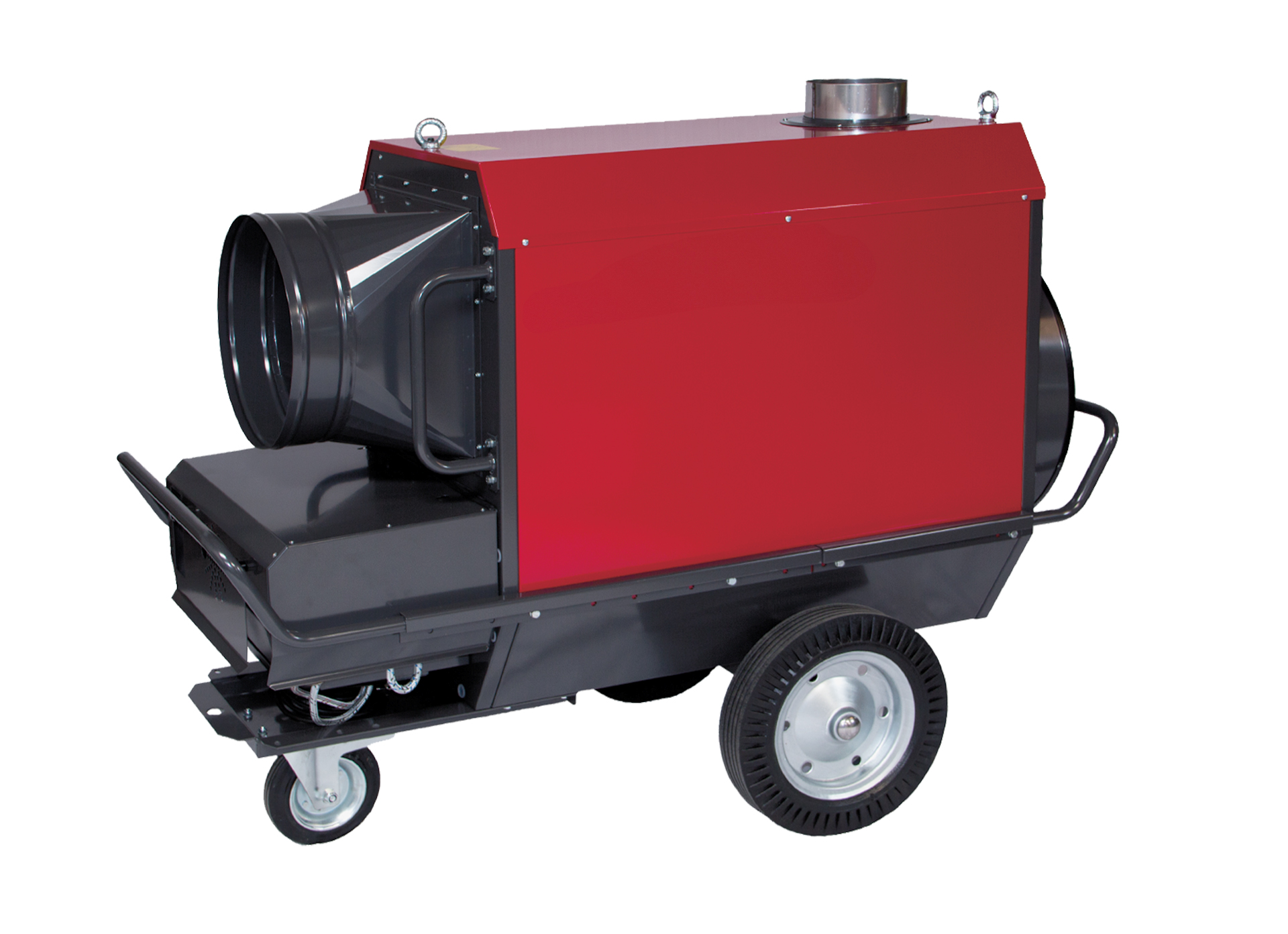

IMA-61 AX

Name: IMA-61 AX
SKU: 41722800/01
Availability: BackOrder

SKU: 41722800/01

Available on backorder

Need advice? Call +31 (0)7 65 87 34 50  or send a message

Printer friendly page

Specifications

Max. Capacity (kW)
65
Air Displacement (m³/h)
4000
Measured Amperage 230V (A)
3.3
Power Connection (V/ph/Hz)
230/1/50
Max. Fan Pressure (Pa)
130
Air Outlet Cone Ø (mm)
400
Chimney Connection Ø (mm)
180
Max. Fuel Consumption (l/h)
6.5
Thermostat Connection
Yes
Dimensions LxWxH (cm)
162x71x128
Packaged Dimensions LxWxH (cm)
203x75x145
Weight (kg)
210
Packaged Weight (kg)
250

Heat calculator

Calculate how much kW is needed for a specific room.

Length (m)

Width (m)

Height (m)

Desired indoor temperature (°C)

Outdoor temperature (°C)

K-value (W/m³·K)

Ventilation (Air changes per hour)

Air flow (m³/u)

Output (KW)

Calculated heat demand *

IMA-61 AX Accesories

View all products from the IMA series

Bekijk de serie

Frequently Asked Questions

The temperature of the intake air is cooled back by about 12°C. It is therefore important to always recirculate the air from the room to be cooled. (In this case, the air is drawn in from the room and blown back into the room with a temperature approximately 12°C lower).

This depends on the area and volume, insulation of the building and application. A rule of thumb is 40W per m3 for insulated buildings and 60W per m3 for tents, for example.

For all heaters with an oil-fired auxiliary burner, the burner can be replaced with a gas-fired auxiliary burner.

Neem contact op!

Send an Email +31 (0)7 65 87 34 50 

Download onze catalogus

Download now

Productie in eigen fabriek

Nederlandse kwaliteit sinds 1958

Wereldwijde levering

Klantspecifiek mogelijk

IMA-61 AX

Specifications

IMA-61 AX Accesories

Aansluit-/reduceerset + magneetventiel

DE600 - Olieaanvoerset, 60l p/u

Fleet Manager - Essentials - IMA-61

IT-1 - Insteekthermostaat, 0/100°C, 6m

Luchtbandenset IMA-61/111/150/200

Luchtslangbocht – Ø400mm, 45°, aluminium

Luchtverdeelkop - IMA-61, 2x Ø300mm

Oliefilter en waterafscheiderset - ITA/IMA/IMAC/MBC

Oliefilterset - ITA/IMA/IMAC/MBC, verwarmd

Oliefilterset en waterafscheiderset- IMA/IMAC

Recirculatieringset - IMA-61, Ø300mm

RT-1 - Ruimtethermostaat, -10/+40°C, 5m kabel

RT-2 - Ruimtethermostaat, -10/+40°C, 10m kabel

RT-3 – Ruimtethermostaat, -10/+40°C, 20m kabel

Ruimtethermostaat - 0/+37°C, 10m kabel

Schoorsteendeksel - IMA Ø180mm

Schoorsteenpijp - Ø180mm, 1m, verzinkt

Schoorsteenregenkap - Ø180mm, verzinkt

Slangklem Ø400mm, grijs

Snelkoppelband - Ø400mm, Rubber

Temperatuursensor 3m (Fleet Manager)

Temperatuursensor 5m (Fleet Manager)

Temperatuursensor 8m (Fleet Manager)

Thermostaataansluiting

Thermostaatstekker

Trafoset IMA - 24V

Tunneldoorvoerset - IMA-111/150/200

Urentellerset IMA-61

Verlengkabel thermostaat - 10m

View all products from the IMA series

Frequently Asked Questions

How many degrees can a Coolmobile drop the temperature?

How much capacity do I need to cool a space?

Can an oil heater be converted to gas?
